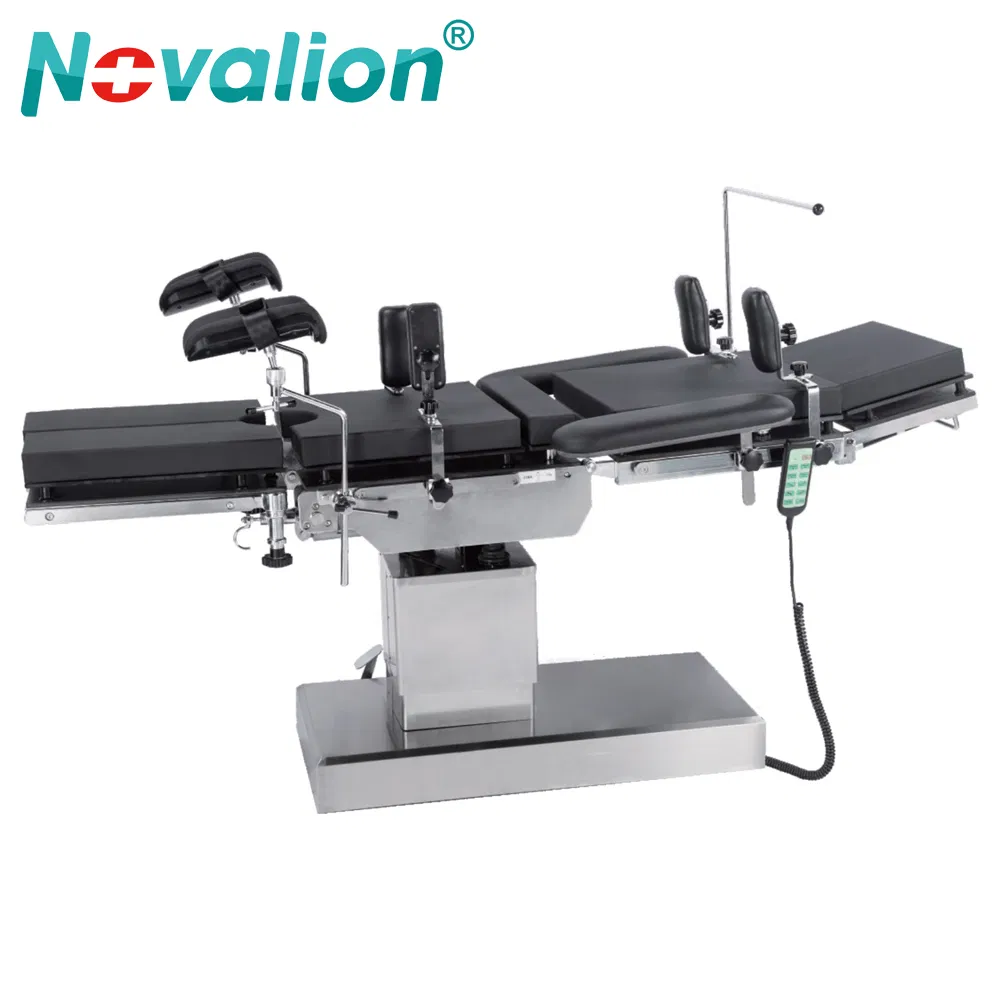

Adjustable Stainless Steel Mobile Hydraulic Surgical Operating Table for Ot Room

Basic Info

Model NO.	YA-02M
Customized	Non-Customized
Condition	New
Height Adjustable	740-940mm
Trendelenburg/	25&Deg
Oading Capacity	200kg
Lateral Tilt (Left/Right)	20°
Transport Package	Package
Specification	750-950± 50mm
Trademark	Medik
Origin	China
HS Code	94029000
Production Capacity	10

Product Description

Main features:

- Mechanical operating table with dual-deck radiolucent tops for x-ray film cassette insertion- Up and Down positioning of this universal surgery table is accessed by foot pedal operated hydraulic pump- Operating table top is divided into 5 sections providing numerous positions- Detachable head section and detachable leg sections provide versatility- Trendelenburg, Reverse-trendelenburg and Lateral tilt positions are obtained by cranks situated under the back section- Integrated kidney elevator on the side of operating table Accessories Anaesthesia screen Shoulder support Body support Arm support Leg support Foot section Technical parameter

Overall size	2040*480*740-940mm
Height adjustment	740-940mm
Head section adjustment	+30° to -90°
Back section adjustment	0° to +60°
Leg section adjustment	0° to -90°
Leg section outward	90°
Trendelenburg/	25°
Reverse trendelenburg	25°
Lateral Tilt (left/right)	20° / 20°
kidney bridge	110mm
Loading capacity	200kg
